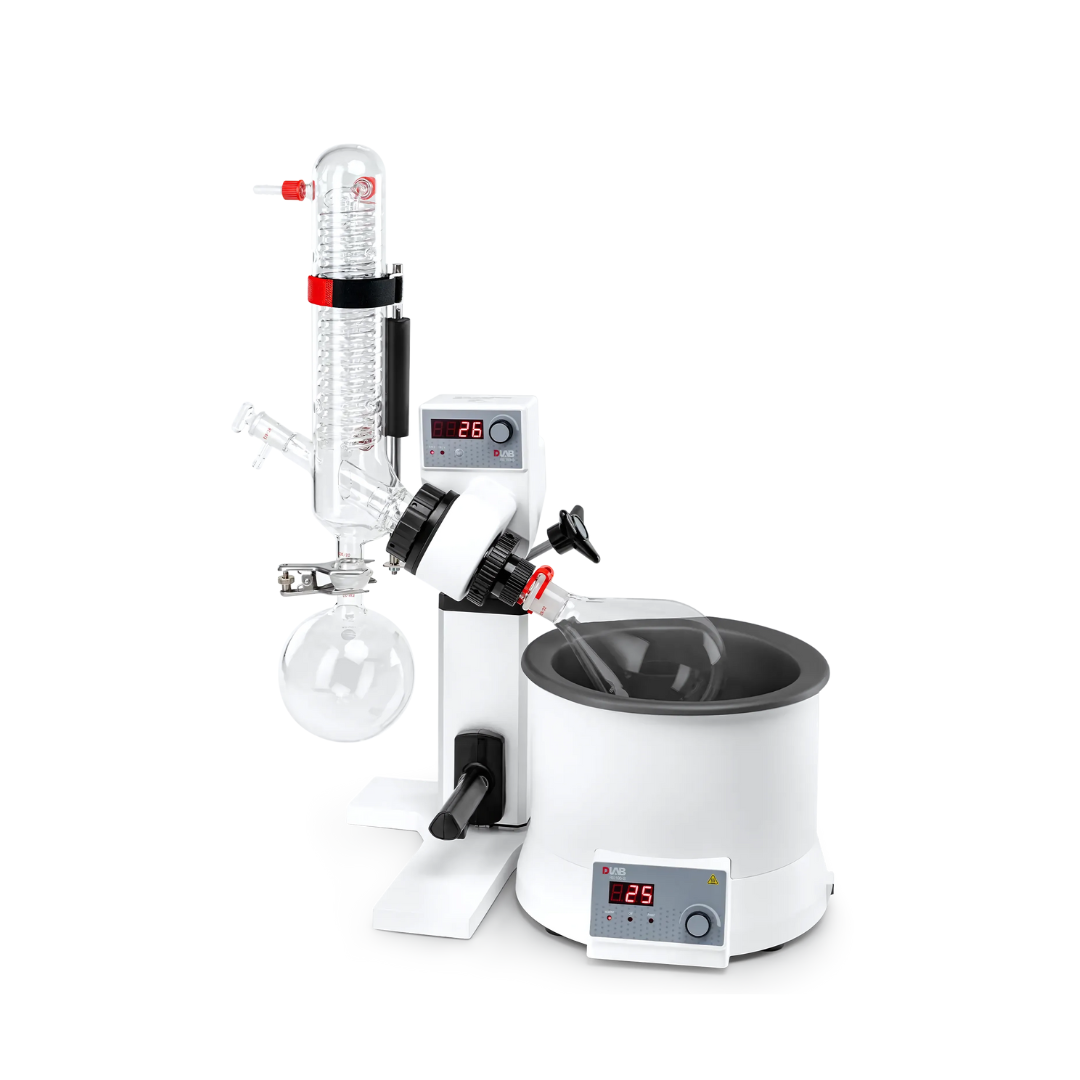

DLAB RE100-S LED Digital Rotary Evaporator

DLAB RE100-S LED Digital Rotary Evaporator

  • 5L heating bath with a wide temperature range (room temp.to180 °C).
  • Independent temperature control makes it can be used separately. Water/oil heating mode can be changed just through a switch
  • Manual lift combined with auxiliary lift for precise positioning of the glassware
  • PID control ensures high temperature accuracy at ±1°C (water)
  • Overheating protection temperature at 220°C
  • Boil-dry protection, automatically power off if heating without water/oil in the heating bath
  • Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process
  • Condenser (cooling surface 1200/1700cm2 for selection), speeding up the flow rate of liquid with excellent cooling effect
  • Ejection mechanism ensures easy exchange of evaporating flask
  • Adjustable immersion angle
  • Double spring sealing ring which is made of PTFE provides an excellent sealing performance
  • Compatible with the entire range of RE100-Pro glassware
  • Optional glassware with explosion proof film available
  • High temperature warning when above 50°C
Category:
Brands:
Pesan Sekarang

Cat.No. : 6030120211

Evaporating flask volume : 50-3000mL

Temperature range : Room temp.-180℃

Temperature control accuracy : water: ±1℃ ；oil: ±3℃

Speed range : 20-200rpm

Direction of Rotation : Clockwise and counterclockwise

Evaporation capacity : 1.56L/h

Ultimate vacuum : –

Temperature control : Micro processer PID control Display

Display : LED

Timer :Yes

Time Setting Range : 1-999min

Lifting mode : Manual

Lifting stroke : 110mm + auxiliary 100mm

Heating bath size : 300×300×240mm

Motor Type : Brushless DC motor

Heating Power : 1200W

Power : 1245W

Voltage/Frequency : 100-120/200-240V，50/60Hz

Dimension[D×W×H] : Main Unit:440×320×450mm

Weight : Main Unit:7kg Heating Bath:3kg

Permissible ambient temperature : 5-40℃

Permissible ambient humidity : ≤80% RH

Protection Class : IP20

USB Interface : Yes



Safety features  :

Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection



Applications

Chemical research, pharmaceutical manufacturing, food processing, cosmetics manufacturing, and chemical laboratories.
