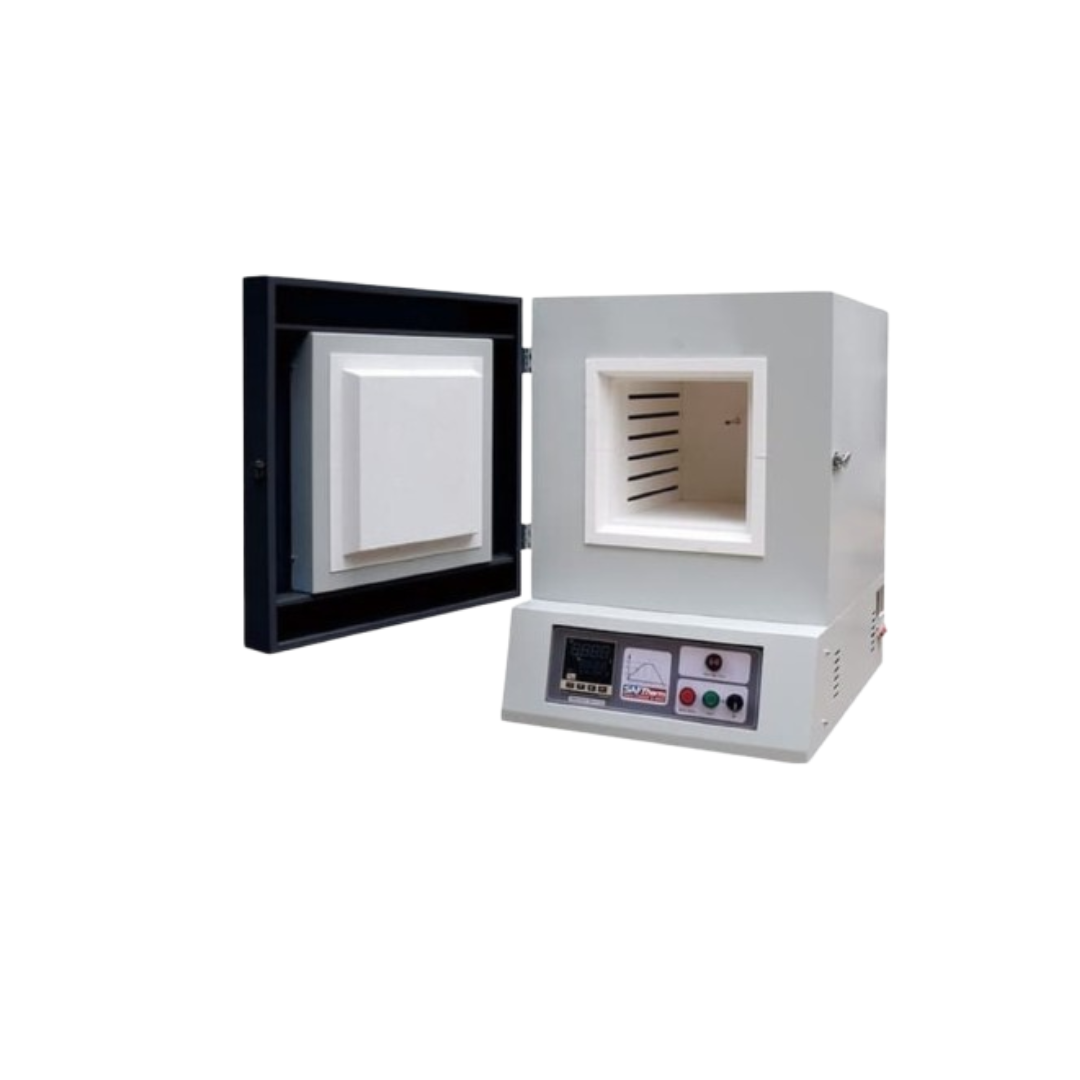

SAFTHERM Muffle Furnace STM-18-12

 Chamber size（W xD xH）mm : 250 x300x250
 Outer size（W xD xH）mm: 550x635x780
 Max temperature: 1200℃
 Working temperature: 1100℃
 Power supply: 220V/6KW
 Heating element : HRE Alloy resistance wire
 Chamber material : Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration
 Temp.Precision : ±1℃
 Termocouple : N Type thermocouple
 Temperature controller : Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling
 Heating rate : 1-25℃/min free adjustment
 Furnace structure : Furnace temperature control integrated structure
 Equipment protection : Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically
 Safety protection : The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators
 Furnace shell : High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder
 Quality certificate : ISO9001 CE SGS TUV
 Standard packing : 1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair
 Optional : 1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves
Accesoris :
1. Furnace body
2. Temperature controller
3. Power cord 3 meters
4. Thermocouple
5. Instruction manual
6. Crucible pliers
7. High temperature gloves
