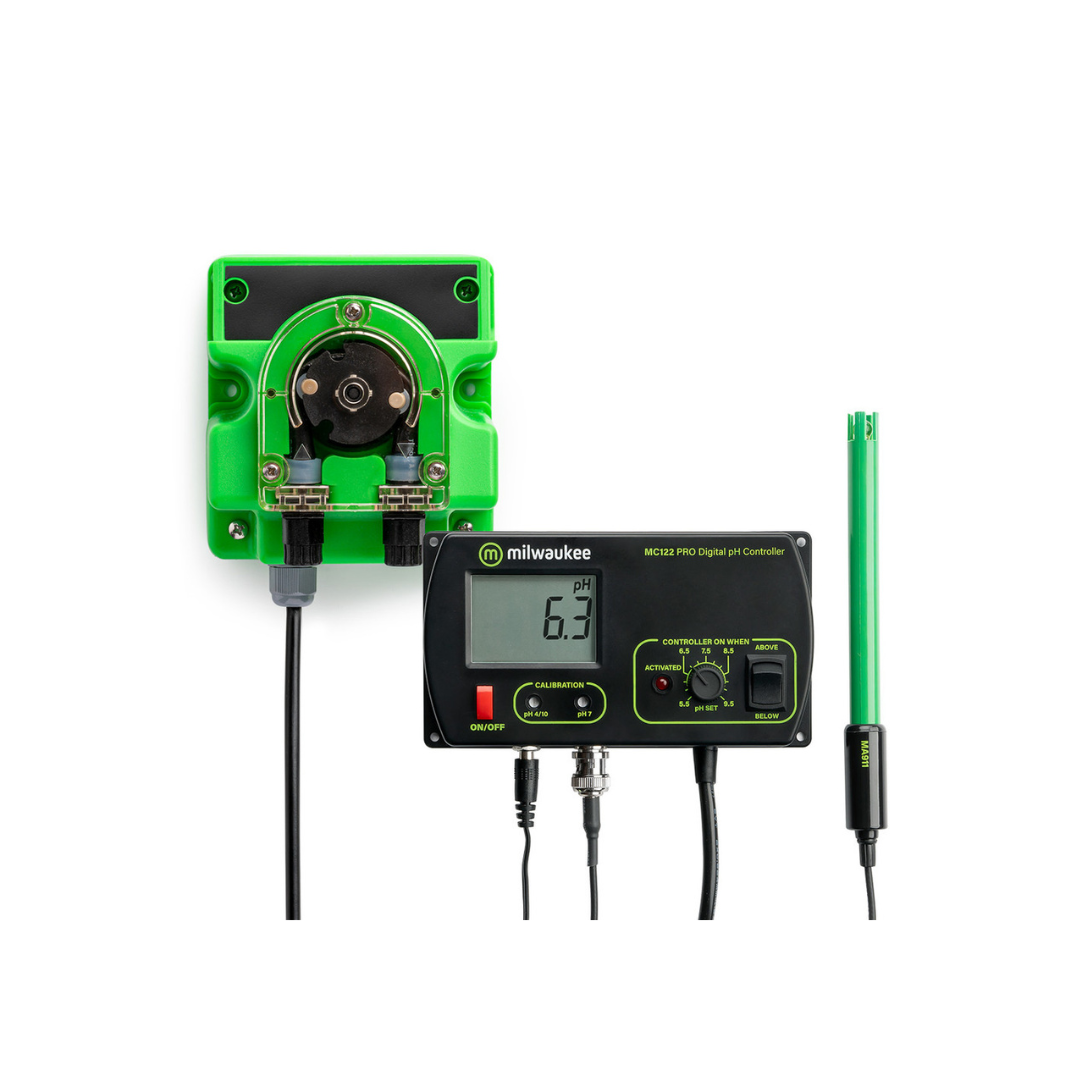

Milwaukee MC720 PRO pH Controller and Pump Kit

The MC720US kit includes the MC122 pH controller and MP810 dosing pump to automatically monitor and fine-tune pH levels. Just set your pH parameters and let the MC720US pH Controller and pump do the rest.

The MC720US is preferred by people looking to dial in their testing program when they have an ongoing need to maintain levels. Common uses are nutrient tanks and aquariums.

Design features

  • Fast easy to read current results with large digital LCD readout
  • Accurate to ±0.2 pH
  • Simple two-point calibration for increased accuracy with manual trimmers for easy adjustment
  • 5.5 to 9.5 pH alarm set point range is easily accessible on the front panel
  • Alarm activated when reading is above or below set point
  • Comes with full mounting kit including probe holders
  • Lab grade, double junction, gel filled probe designed for low maintenance
  • 6.5’ probe cables for extra flexibility
  • 12 VDC power supply
  • Pump provides a maximum pressure of 1.5 bar or more than 50 feet of head pressure with a 0.39268 GPH / 9.5 GPD dosing flow.
  • Uptake & Discharge Tubing Material: Polyethylene, 4.92′ / 1.5 m.
  • Black Pump Squeeze Tube Material:  Norprene.



Category:
Brands:

MC122 Specifications

Range: 0.0 – 14.0 pH
Resolution: 0.1 pH
Accuracy: ±0.2 pH
Set point: 5.5 to 9.5 pH
Calibration: Manual 2 points
Alarm Active when reading is higher or lower than set point
Dosing Contact: 1 power plug for CO2 dosing
pH electrode: MA911B/2 (included)
Environment: 0 to 50 °C / 32 to 122 °F; max RH 95%
Power Supply: 12 VDC adapter (included)
Power Drivers: 115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz
Mounting kit (Included)
Dimensions: 5.9 x 3.2 x 1.35 inches
Weight: 6.3 ounces (meter only)

MP810 Specifications

Max. Flow: 0.025 L/min or 0.0065 GPM, 0.39268 GPH, 9.5 GPD
Max. Pressure: 1.5 bar
Uptake & Discharge Tubing Material: Polyethylene, 4.92′ / 1.5 m
Black Pump Squeeze Tube Material: Norprene
Uptake & Discharge Tubing Material: Polyethylene, 4.92′ / 1.5 m
Black Pump Squeeze Tube Material: Norprene
Ext. Tube connection: 6 mm
Power supply: 240 VAC, 50-60 Hz or 110 VAC, 60 Hz
Power consumption: 0.42 W
Dimensions: 100 x 106 x 108 mm
Weight: 17.6 oz.
