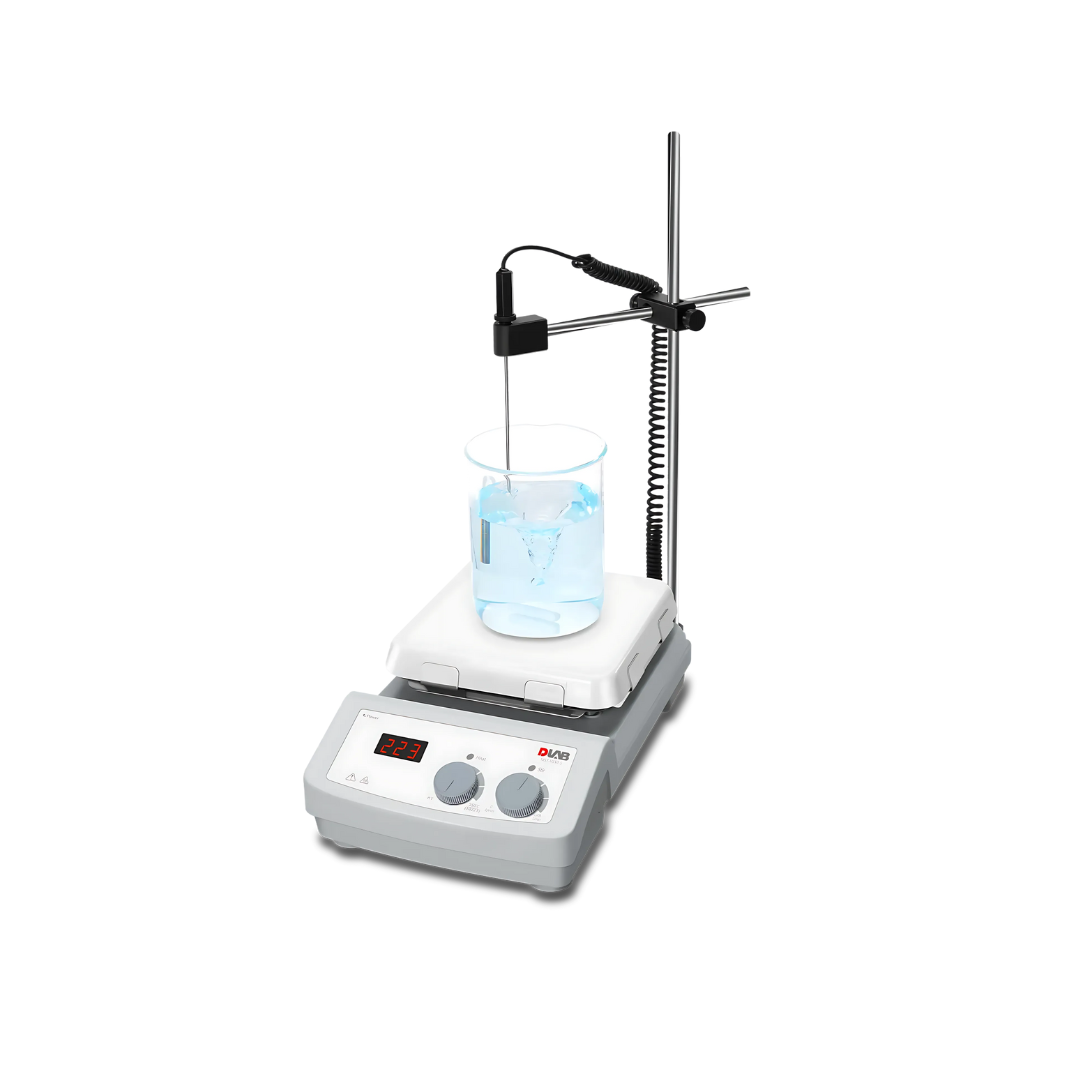

DLAB MS7-H550-S LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

DLAB MS7-H550-S LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

  • LED displays actual temperature
  • Built-in PID controller ensures safe heating of the medium with overheating protection
  • Maximum heating plate temperature up to 550℃
  • Glass ceramic work plate is resistant to corrosion and is easy to clean
  • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
  • Digital speed control with maximum range of 1500rpm
  • Outstanding brushless DC motor offers more stirring power
  • Two knobs enable easy adjustment of speed and temperature
  • “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
  • Remote function provides PC control and data transmission



Category:
Brands:
Pesan Sekarang

Cat.No.  : 8030122211

Work plate Dimension : 184x184mm ( 7 inch )

Work plate material : Glass ceramic

Max. stirring quantity [H2O] : 10L

Speed range : 0-1500rpm

Speed display : Scale

Temperature display : LED

Heating temperature range : Room Temp.-550℃, increment 5℃

Temperature control accuracy : ±10℃

Temperature display accuracy : ±1℃

External temperature sensor : PT1000 (accuracy ±0.2℃)

“Hot” warning : 50°C

Overheating temperature protection : 580°C

Motor type : Shaded pole motor

Stirring positions : 1

Max. magnetic bar length : 80mm

Data connector : –

Timer function : –

Protection class : IP21

Motor rating input : –

Motor rating output : 1.5W

Power : 1030W

Heating output : 1000W

Voltage,Frequency : 100-120V/200-240V，50/60Hz

Dimension [WxDxH] : 215x360x112mm

Weight : 4.5KG

Permissible ambient temperature : 5~40℃

Permissible ambient humidity : 80% RH
