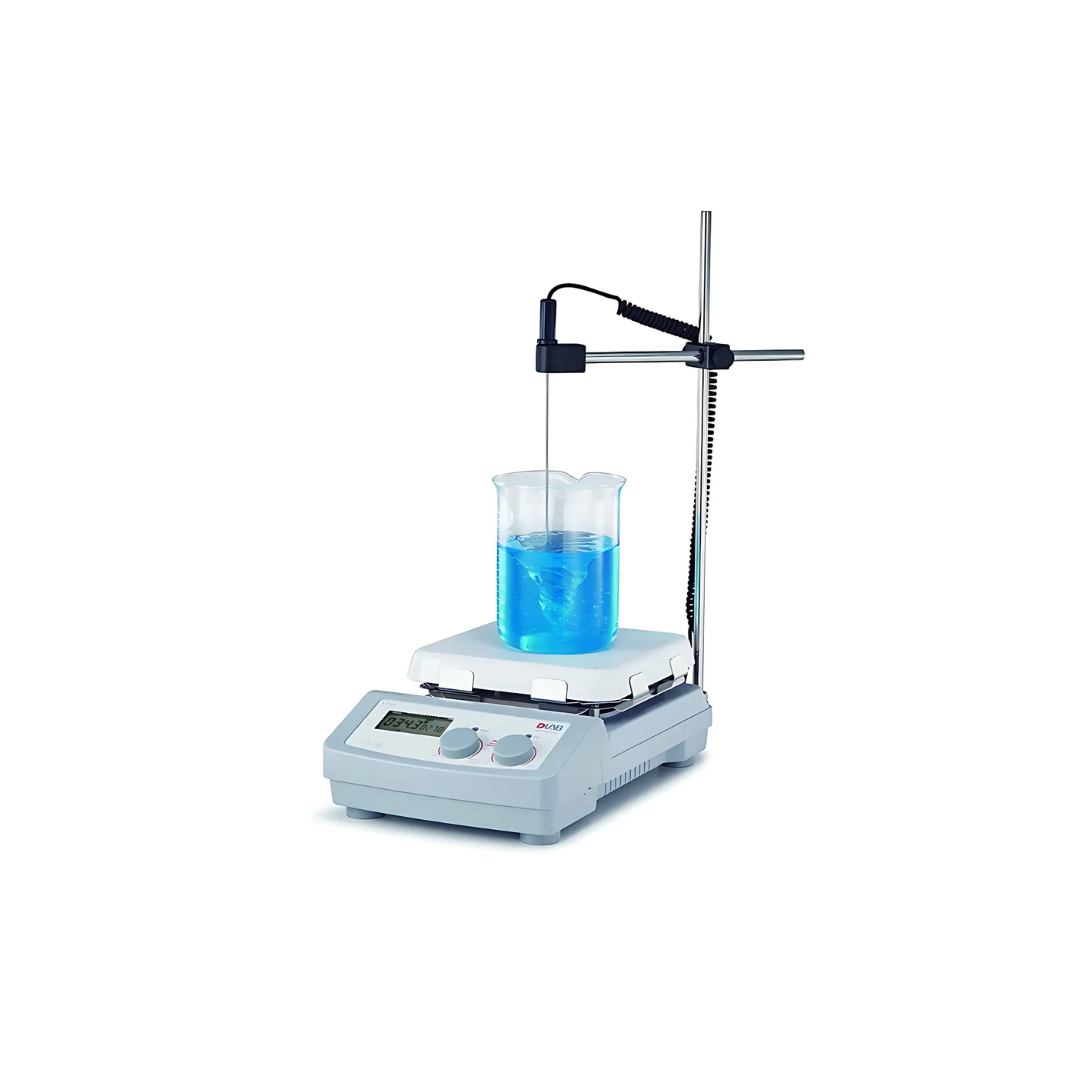

DLAB MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

DLAB MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

  • LCD displays actual temperature & speed
  • Built-in PID controller ensures safe heating of the medium with overheating protection
  • Maximum heating plate temperature up to 550℃
  • Glass ceramic work plate is resistant to corrosion and is easy to clean
  • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
  • Digital speed control with maximum range of 1500rpm
  • Outstanding brushless DC motor offers more stirring power
  • Two knobs enable easy adjustment of speed and temperature
  • “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
  • Remote function provides PC control and data transmission
Category:
Brands:
Pesan Sekarang

Cat.No. : 8030122111

Work plate Dimension : 184x184mm ( 7 inch )

Work plate material : Glass ceramic

Max. stirring quantity [H2O] : 20L

Speed range : 100-1500rpm，resolution±1rpm

Speed display : LCD

Temperature display : LCD

Heating temperature range : Room Temp.-550℃, increment 1℃

Temperature control accuracy : ±1℃(<100℃) ±1%(>100℃)

Temperature display accuracy : ±0.1℃

External temperature sensor : PT1000(accuracy ±0.2℃)

“Hot” warning : 50℃

Overheating temperature protection : 580℃

Motor type : Brushless DC motor

Stirring positions : 1

Max. magnetic bar length : 80mm

Data connector : RS232

Timer function : –

Protection class : IP21

Motor rating input : –

Motor rating output : 10W

Power : 1050W

Heating output : 1000W

Voltage,Frequency : 100-120V/200-240V，50/60Hz

Dimension [WxDxH] : 215x360x112mm

Weight : 5.3kg

Permissible ambient temperature : 5-40℃

Permissible ambient humidity : 80% RH
