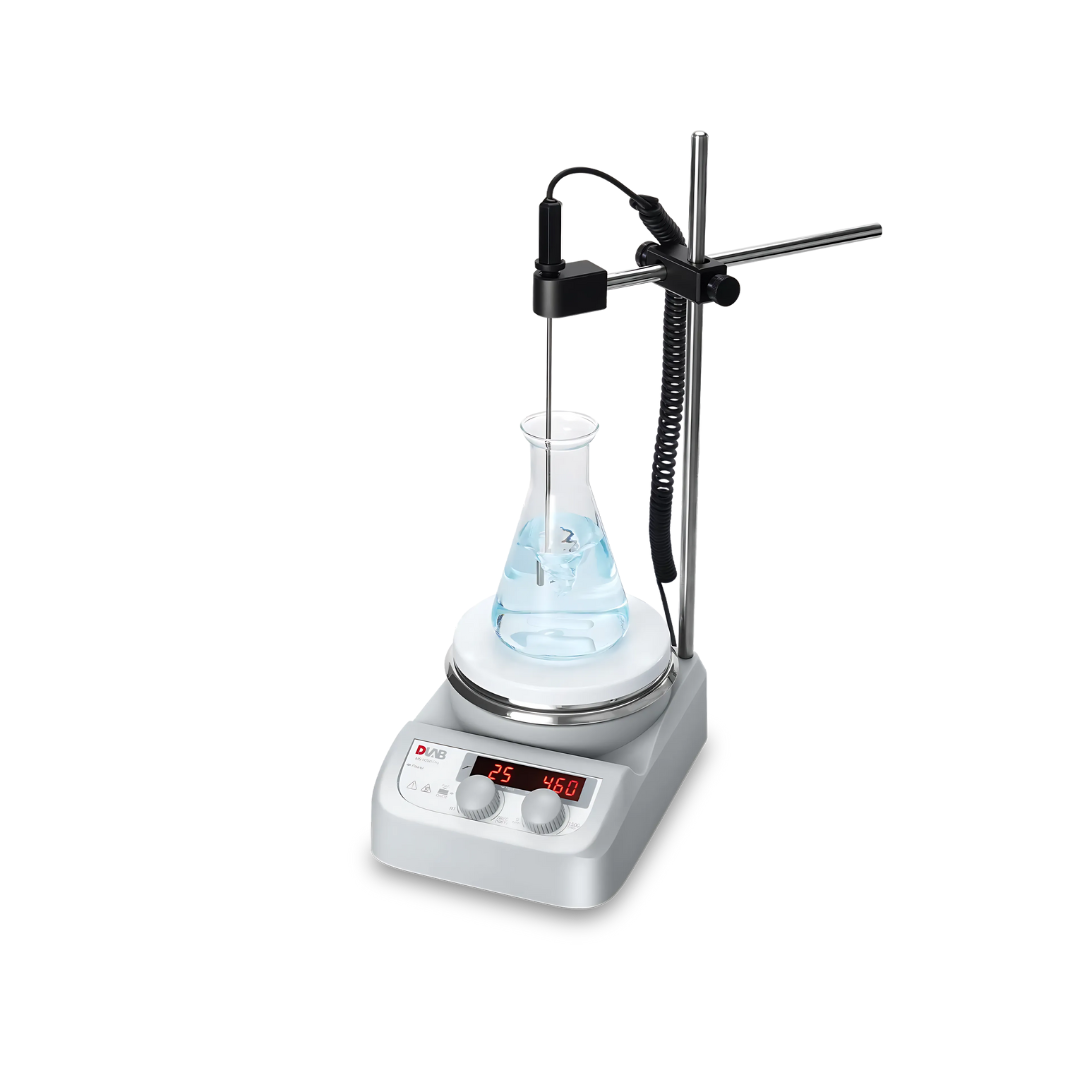

Cat.No. : 8030101212
Work plate Dimension : Ø 135mm(5 inch)
Work plate material : stainless steel cover with ceramic coating
Max. stirring quantity [H2O] : 3L
Speed range : 200-1500rpm
Speed display : LED
Temperature display : LED
Heating temperature range : Room Temp.-280℃
Temperature control accuracy : ±1℃ (<100℃) ±1% (>100℃)
Temperature display accuracy : ±1℃
External temperature sensor : PT1000 ( accuracy±0.2℃ )
“Hot” warning : 50℃
Overheating temperature protection : 320℃
Motor type : Brushless DC motor
Stirring positions : 1
Max. magnetic bar length : 50mm
Data connector : –
Timer function : –
Protection class : IP42
Motor rating input : 5W
Motor rating output : 3W
Power : 515W
Heating output : 500W
Voltage,Frequency : 100-120V/200-240V，50/60Hz
Dimension [WxDxH] : 150x260x100mm
Weight : 1.8kg
Permissible ambient temperature : 5-40℃
Permissible ambient humidity : 80% RH
