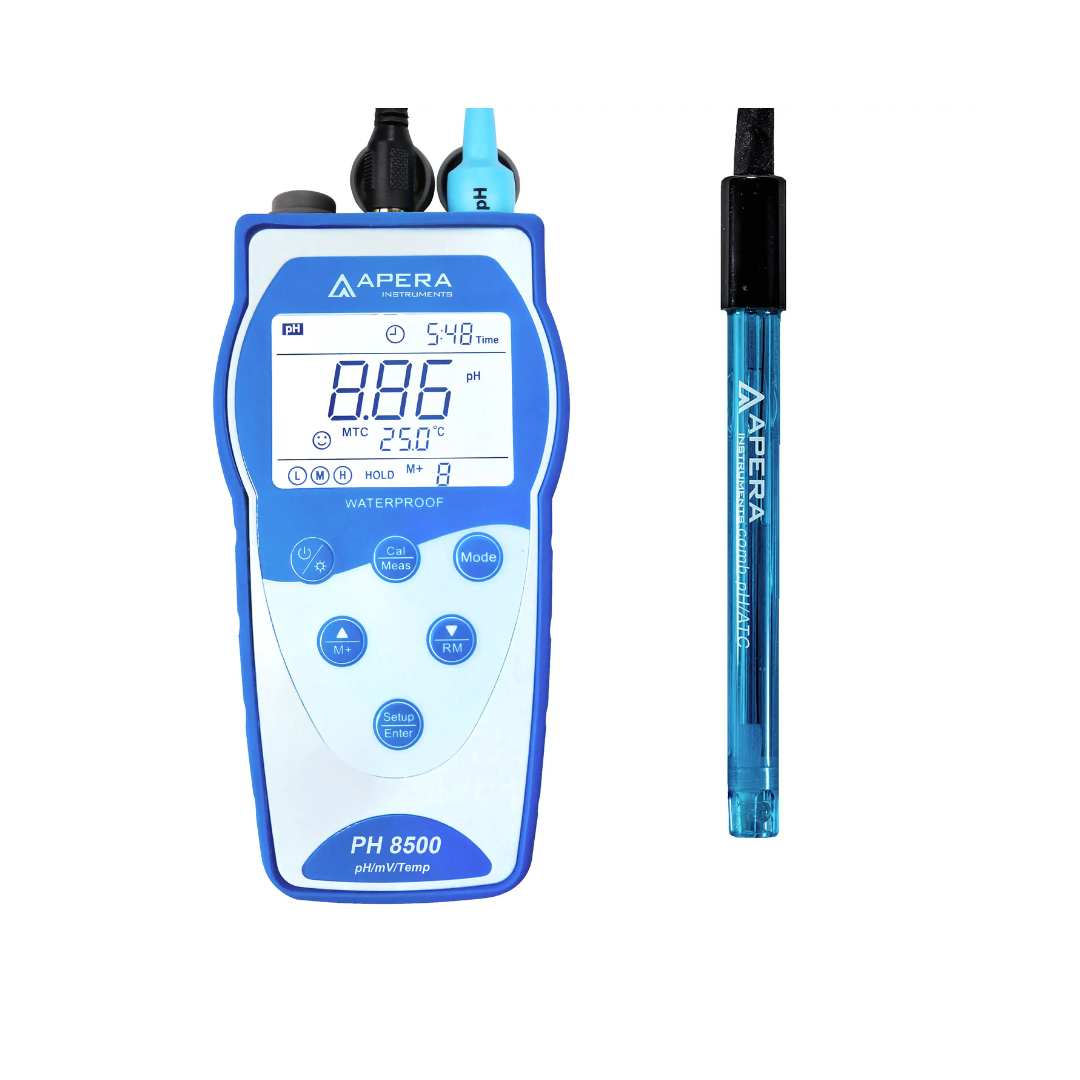

APERA PH8500

The Apera Instruments PH8500 Portable pH Meter Kit is designed for lab-grade pH and conductivity measurement in the field with various intelligent functions and a rugged structure.

Instrument Features

  • GLP Data management (500 groups of data storage), USB data output.
  • Ideal for use in harsh environments — IP57 Waterproof rating, silicone socket protector and grip cover protect the instrument from general impact.
  • The large backlit LCD displays pH/mV and temperature along with icons of stable readings and finished calibrations.
  • The foldable stand allows use as a benchtop meter.

pH Features

  • The high quality 201T-F 3-in-1 pH/temp. pH Electrode built with Apera’s unique lithium glass membrane and a lead-free food-grade glass tube ensures quick & accurate pH measurements (±0.01 pH±1 digit) for general water solutions.
  • Quick and easy 1 to 3 points auto. pH calibration with calibration reminder and last calibration check; automatically recognizes pH standards of 1.68, 4.00, 7.00, 10.01, 12.45.
  • Built-in self-diagnosis ensures pH calibration will be performed correctly and guides you on how to fix common problems.
  • Standard BNC connector, compatible with Apera’s LabSen® Series professional pH electrodes for other applications.
  • ORP measurement is available with an ORP probe attached (301Pt-C)



Category:
Brands:

Technical Specifications

pH

Measuring Range : -2.00 to 16.00 pH

Resolution : 0.1/0.01 pH

Accuracy : ±0.01 pH ±1 digit

Temperature Compensation Range : (0 to 100)˚C (Auto. or Manual)

Calibration point : 1 to 3 points



mV

Measuring Range : ±2000mV

Resolution  : 1mV

Accuracy : ±0.1% FS ±1 digit



Temp

Measuring Range : 0 to 100℃

Resolution : 0.1℃

Accuracy : ±0.5℃±1 digit



Other Specifications

Data Storage : 500 groups

Storage Content : Numbering, measuring value and temperature value, data and time

Power : 3* AA alkaline batteries

Dimension & Weight

Meter: (88*170*33)mm / 313g

Case: (360*270*76)mm / 1.6kg

Connector  : BNC for pH and ORP; RCA for temperature, 8-pin for conductivity

What’s in the box :  PH8500 meter, 201T-F pH/temp. electrode,  Software flash drive, USB cable, 50ml of pH buffers (4.00, 7.00), screwdriver (for battery replacement), instruction manual, carrying case
